What is Head tube angle, seat tube angle, stack, and reach of D35 and ST

What is Head tube angle, seat tube angle, stack, and reach of D35 and ST

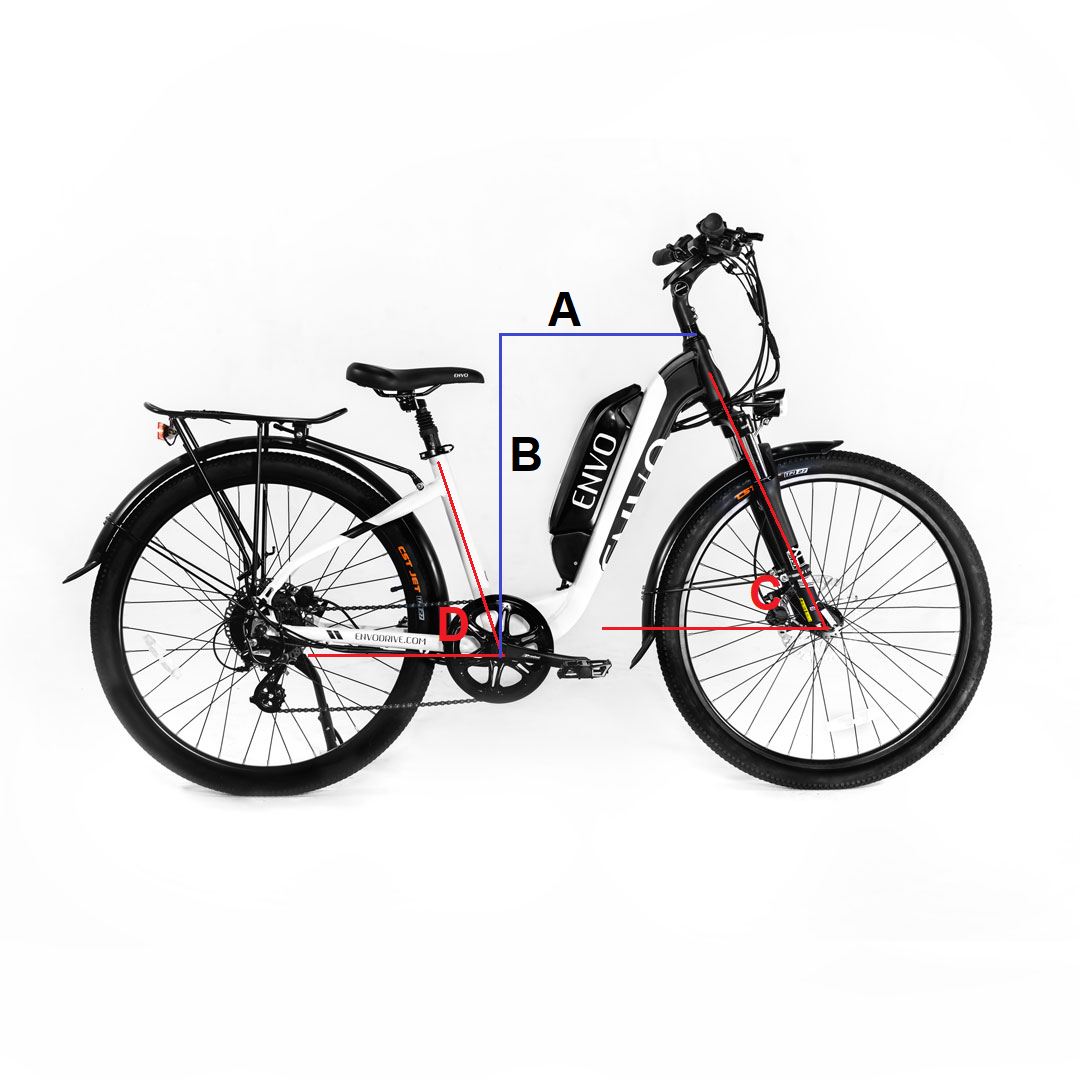

Please refer to the following table for the head tube angle, seat tube angle, stack, and reach values.




A= Reach

B= Stack

C=Head tube angle

D= Seat tube angle





A

B

C

D

D35 – 20’’

400mm

682mm

71

72.6

D35 – 18’’

377mm

681mm

71

72.6

D35 – 16’’

331mm

695mm

71

72.6

ST – 19’’

387mm

606mm

69

72

ST – 15’’

386.3mm

607mm

69

72
