If your wheel size is not set correctly, follow these steps to adjust it:

1. Enter Settings Mode

   • With the vehicle turned on and stationary, press and hold the “i” button for more than 2 seconds.

   • The display will enter the Setting state.

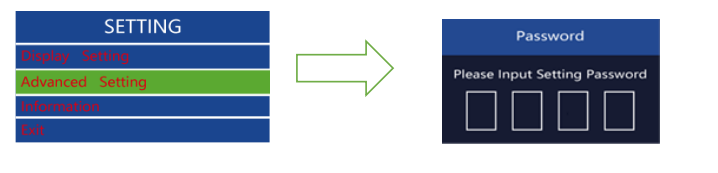

2. Go to Advanced Settings

   • In the Setting interface, press UP or DOWN to select Advanced Settings.

   • Press the “i” button and enter the password to open the menu.

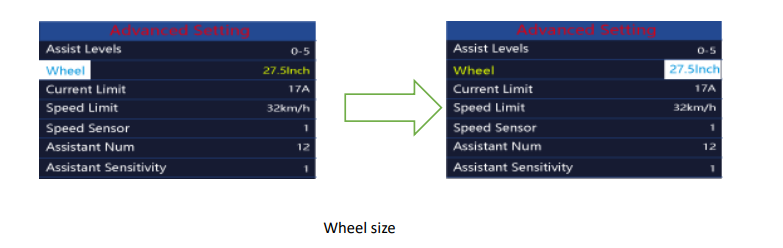

3. Adjust Wheel Size

   • In Advanced Settings, press UP or DOWN to select Wheel.

   • Press the “i” button to enter.

   • Use UP or DOWN to choose the correct wheel diameter from the available options:
     16 / 17 / 18 / 19 / 20 / 21 / 22 / 23 / 24 / 25 / 26 / 27.5 / 28

   • Press “i” to save and exit to the Wheel menu.

4. Exit to Main Screen

   • To return to the main interface, either:

     • Hold the “i” button, or

     • Select BACK → Exit.

Correct Wheel Size Values

• ENVO D50 / ST50 → 27.5”

• Flex Overland / Trike → 22”
