ENVO Flex Trike Frame Alignment Tutorial

ENVO Flex Trike Frame Alignment Tutorial

Here is a tutorial on how to fix the tilt angle displacement on the ENVO Flex Trike

Tools Required:

  • Bubble leveler
  • Number 6 Allen key
  • Number 15 wrench
  • Number 19 wrench

Steps:

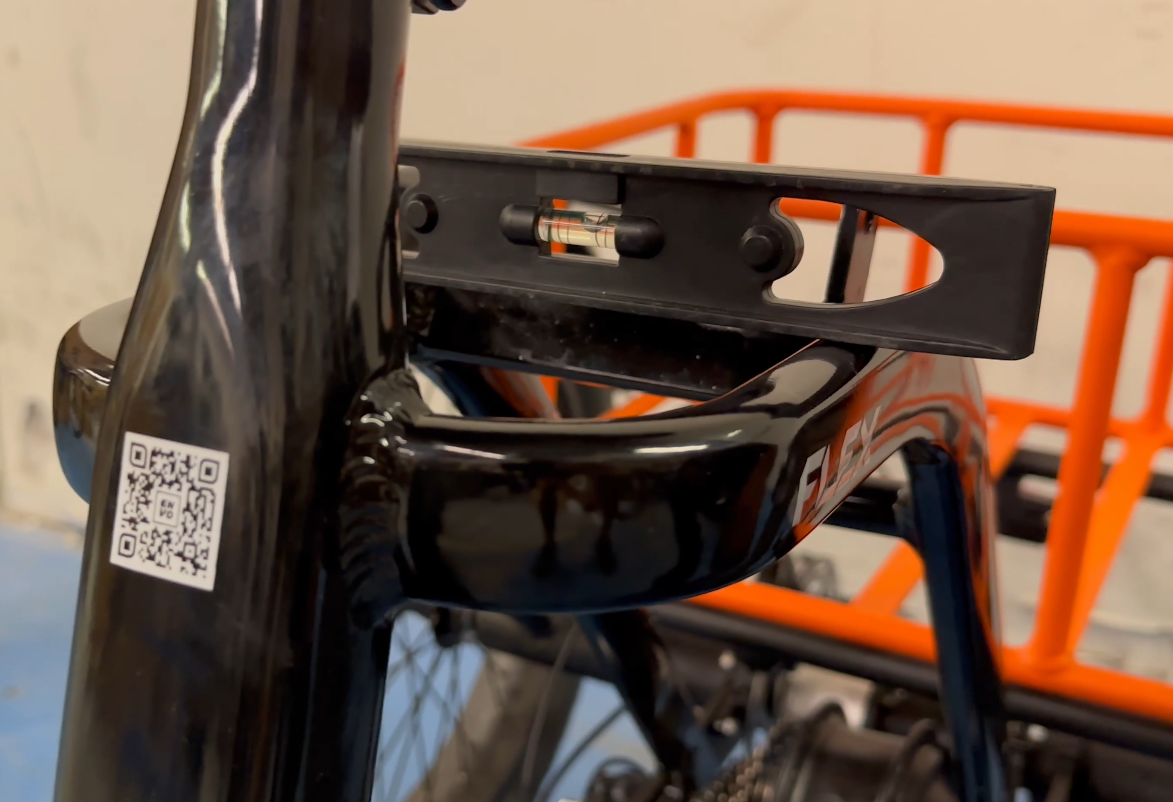

  1. Place the bubble leveler on the rear part of the tricycle. You will see that the leveler is not level.

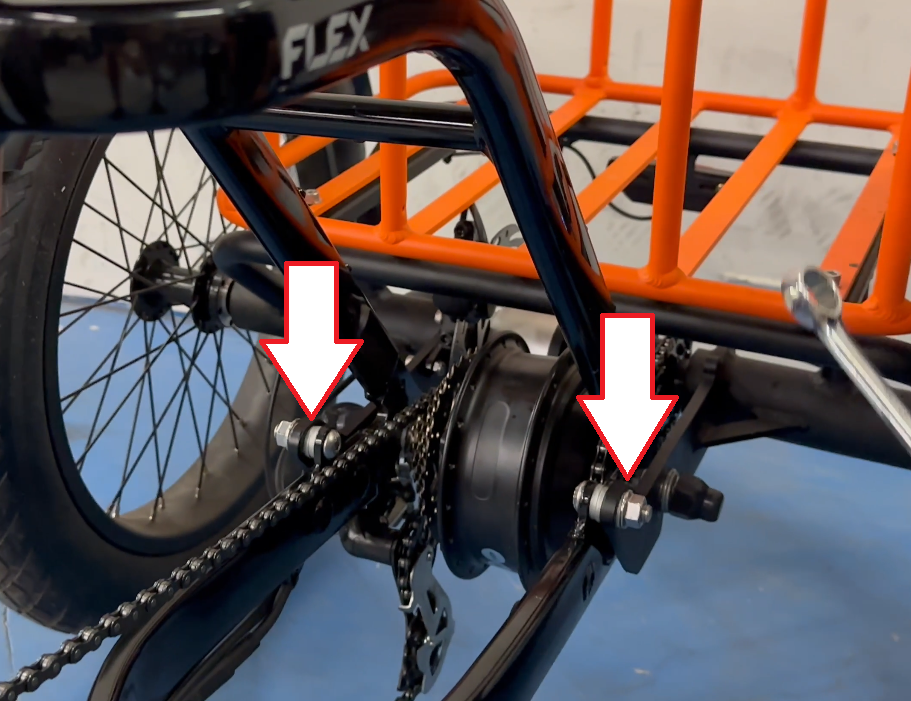

  1. Loosen the two nuts on the rear carrier using the number 15 wrench.

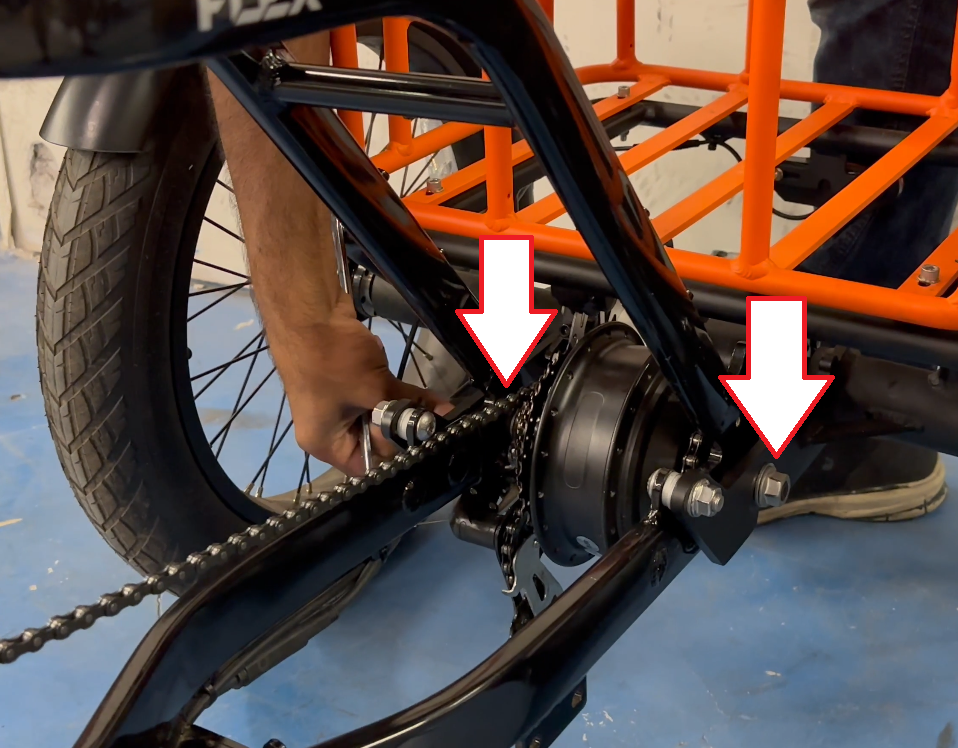

  1. Loosen the motor axle nuts using the number 19 wrench.

  1. Adjust the rear carrier until the bubble leveler is centered. You may need to push the tricycle around to get it centered.
  2. Tighten all four nuts.
